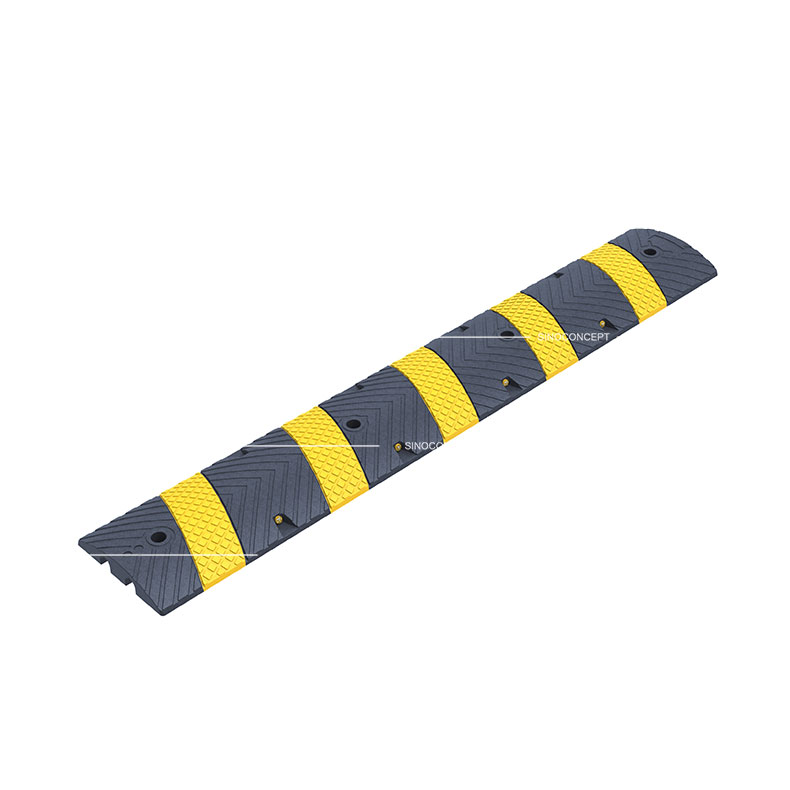

One part speed bump also called road bump 1830 type made of Plastic-Rubber composite for car park management.
1830 mm road ramp made of Plastic-Rubber composite with anti-slip arrows design.
Bottom view of 1830mm speed ramp designed to receive two cables and installation accessories.
One part speed bump also called road bump 1830 type made of Plastic-Rubber composite for car park management.

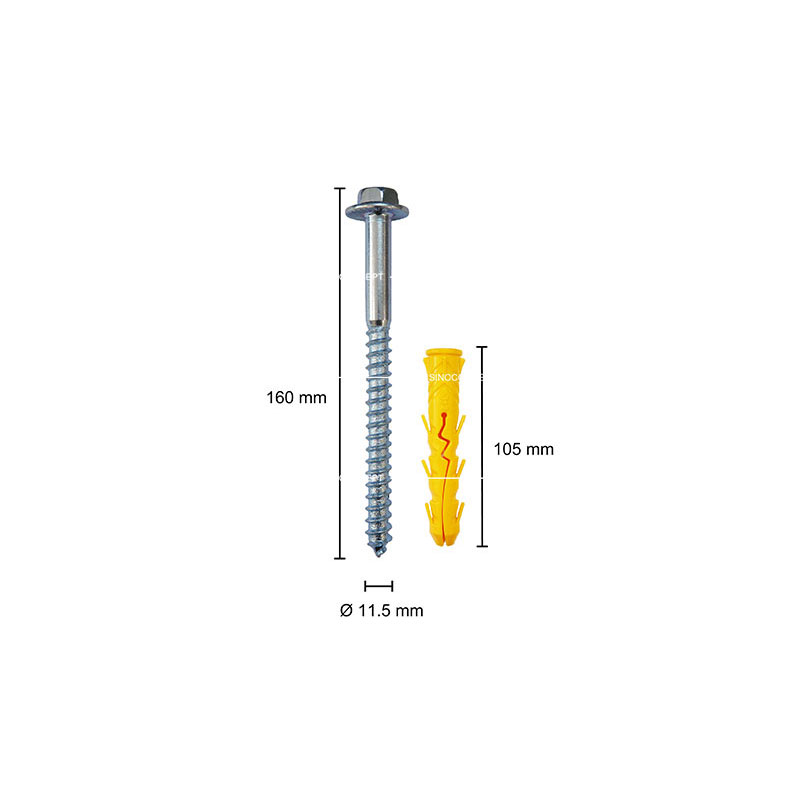

A flange bolt with a diameter of 11.5mm and a height of 160mm, paired with a yellow plastic anchor that is 105mm in height.

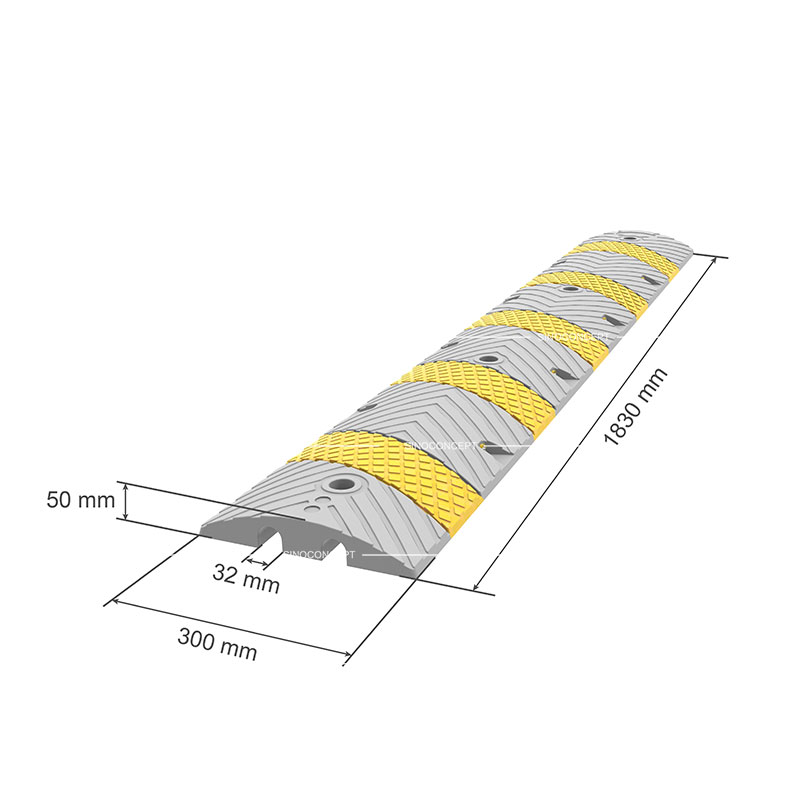

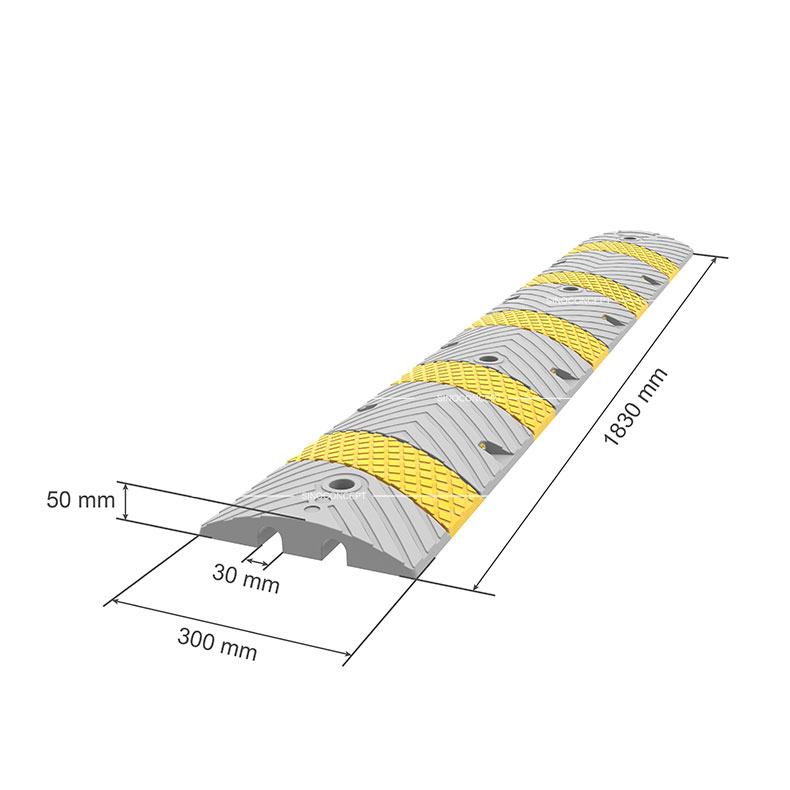

3D drawing of a one-part speed bump showing dimensions of the middle part.
One part speed bump also called road bump 1830 type made of Plastic-Rubber composite for car park management.

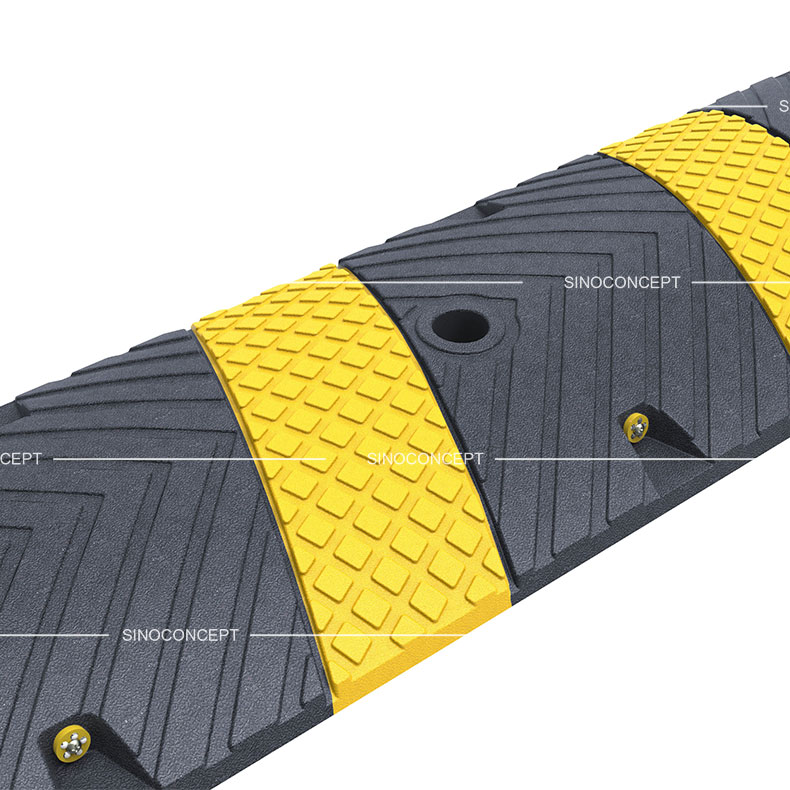

1830 mm road ramp made of Plastic-Rubber composite with anti-slip arrows design.

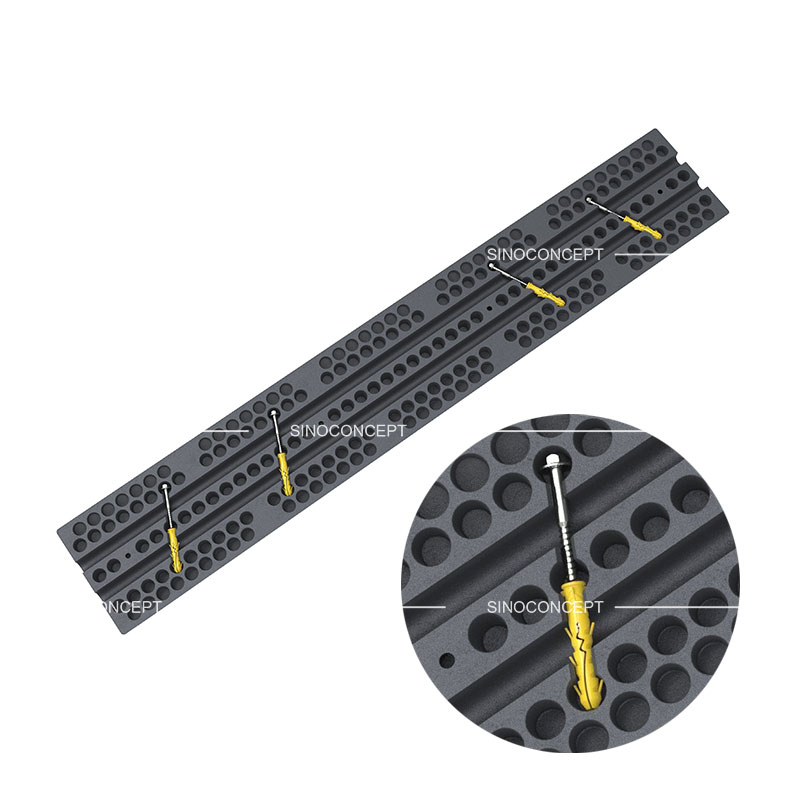

Bottom view of 1830mm speed ramp designed to receive two cables and installation accessories.
One part speed bump also called road bump 1830 type made of Plastic-Rubber composite for car park management.
A flange bolt with a diameter of 11.5mm and a height of 160mm, paired with a yellow plastic anchor that is 105mm in height.
3D drawing of a one-part speed bump showing dimensions of the middle part.

One-Part Speed Bump

  • Material: Speed ramp made from rubber-plastic composite, REACH certified, non-toxic, designed to withstand regular traffic from light and heavy vehicles, ensuring long-lasting durability.
  • Finish: Yellow colour integrated into the material, with no paint used, providing lasting visibility without fading.
  • Dimensions and Design: This 1.83-metre-long model (6 feet) features a one-piece construction, providing stability and durability while allowing for quick and easy installation, reducing setup time.
  • Visibility: Equipped with 180° glass bead reflectors, offering high visibility in all conditions, including at night, ensuring long-lasting reflectivity.
  • Usage: Ideal for private roads, car parks, or industrial areas, providing effective traffic control. Slows down vehicles to a maximum of 9 mph (15 km/h).

Spec Sheet
Download
Catalogue
Download

Clear
Interested in bulk orders? Contact us for a customised quote!

Specifications and dimensions of our modular speed bumps

Modular speed bump
Length
  • Middle part: 1830 mm (6 ft)
  • End cap: 150 mm (6 in)
Width 300 mm (12 in)
Height 50 mm (2 in)
Built-in Channel Ø 30 mm (1.18 in)
Material Plastic-Rubber composite
Packing Plywood crate
Mounting Hardware Galvanised hex flange coach screws & Plastic anchors (polypropylene)
Spots
  • Private driveway, site and road construction zone, parking space, etc.
  • Warning: Speed bumps are not for use on a roadway or nearby an intersection, crosswalk or roundabout. You should consider using a speed cushion that will not disturb any emergency vehicle, motorist or bicycle crossing.
Additional Information
  • Convenient built-in interlocking system for quick installation.
  • Eight integrated glass bead reflectors for enhanced visibility day and night.
  • Two integrated underlying channels for cable protection.
  • Skid-proof surface manufactured from Plastic-Rubber composite.
  • Matching American standard regulations (IFE, FHWA) and European standards.

One-Part Speed Bump Overview: Traffic Calming for Private Roads

Our one-part speed bump is a cost-effective solution to slow traffic in areas that need speed control. It is ideal for residential streets, car parks, pedestrian zones, and shopping centres.

It is made from a heavy-duty Plastic-Rubber composite, which makes it long-lasting. It works well in all weather conditions and on different road surfaces like asphalt, concrete, or block paving.

The convenient built-in interlocking system prevents shifting or separation during use, while also making installation quick and secure. It’s a smart way to manage traffic flow and improve road safety in busy places.

One-part speed bump for traffic calming on private roads with interlocking system and durable plastic-rubber material

Main Features and Performance Benefits

At Sino Concept, we’ve designed this modular speed ramp to offer many benefits, combining reliable performance with easy-to-use features for different environments.

One-part speed bump with 180° glass bead reflectors for enhanced night visibility and safe braking

Enhanced Visibility

Our one-part speed ramp has eight built-in 180° glass bead reflectors, helping drivers see it at night and slow down in time.

One-part speed bump with built-in interlocking system for fast installation and cost-effective speed control

Easy to Install

Our built-in interlocking system keeps each part securely in place, making installation fast and reliable. With one centre part and two end caps only, the simple design saves effort and covers a wider area.

One-part speed bump with built-in Ø30 mm cable channels for traffic calming in event areas and work zones

Built-in Channels for Cable Protection

There are two Ø 30 mm channels underneath to protect cables. This is useful in event areas where you need traffic calming and cable protection at the same time.

One-part speed bump with built-in underside storage for fixings to simplify handling and transport

Built-In Storage for Accessories

Each middle part and each end cap features a smart underside design that fits required fixings directly. This makes handling and transport easier, with no need for extra boxes.

Applications: Speed Bumps for Private Roads and More

This modular speed bump is ideal for private areas where traffic calming is needed.

  • Residential areas and private driveways
  • Car parks, shopping areas, and warehouses
  • Construction sites and event spaces

It’s not made for public roads with emergency vehicles or for use near intersections. For those places, speed cushions offer a safer and more effective traffic-calming solution.

One-part speed bump applications for residential areas, car parks, warehouses, and event spaces

The Full Range of Our Speed Bumps & Road humps

This one-part speed bump is part of our extensive range of speed bumps and speed humps:

Our one-part speed bumps feature a yellow and black colour combination for high visibility. They can be combined with wheel stops, warning signs, and other traffic calming products to provide complete site traffic control.

List of available types of speed bumps and humps

Contact Us Today

Our modular speed bump is simple, safe, and reliable. Contact our sales team today to get a quote or learn more about our full traffic calming range!
