Steel reflective post marker pasted with high-intensity grade film only on one side to be installed along roadsides for traffic control
The reflective post also called reflective driveway marker made of steel and fixed with reinforced rivets to be stable and long-lasting

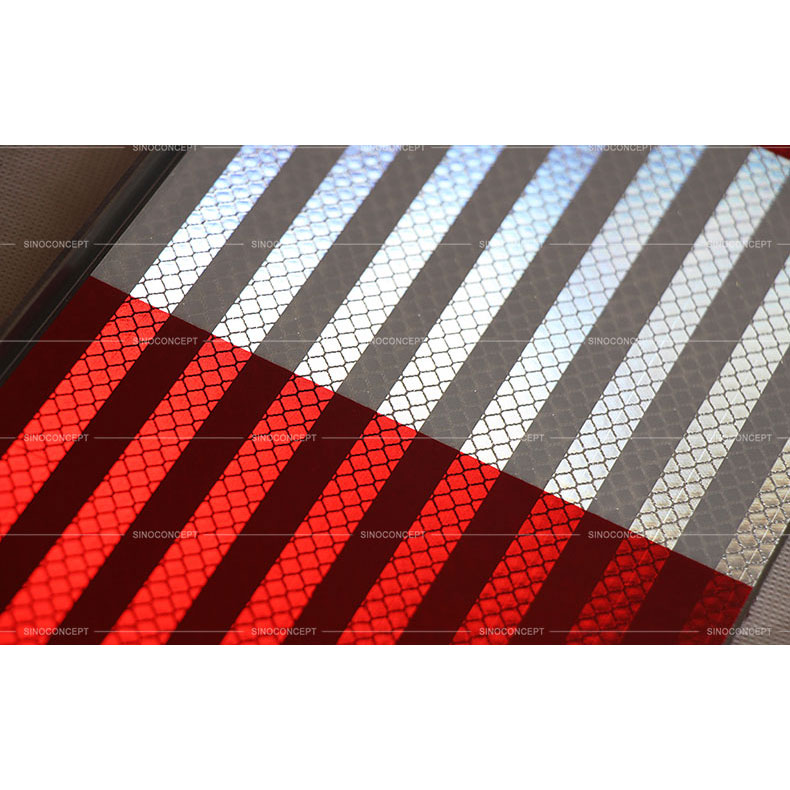

High-intensity grade films used on our steel reflective post of K5B type to increase visibility and safety in all weather conditions

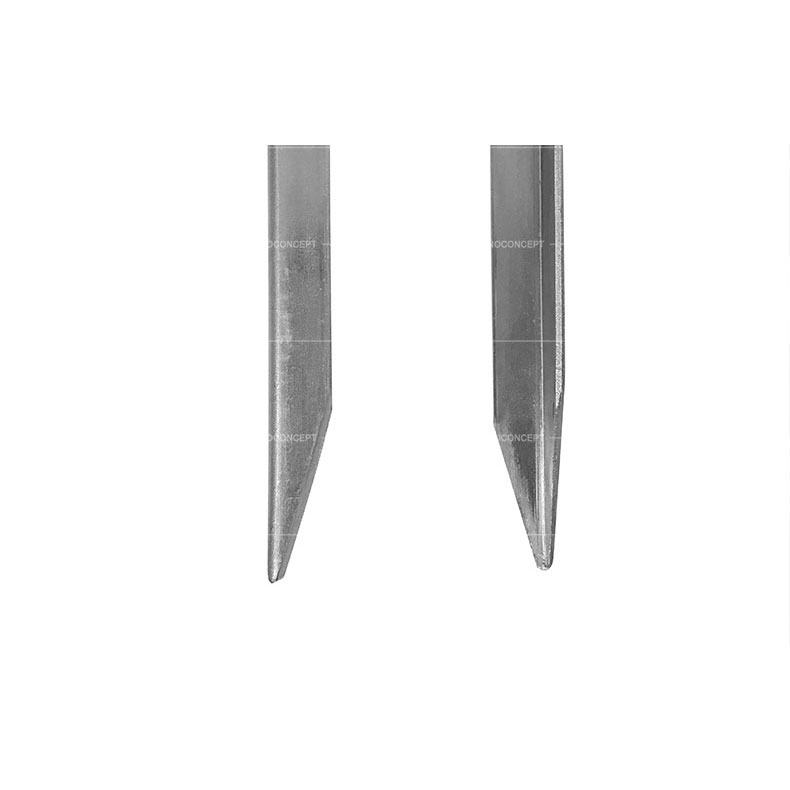

Lower section of a metal roadworks beacon, featuring pointed ends designed for ground insertion.

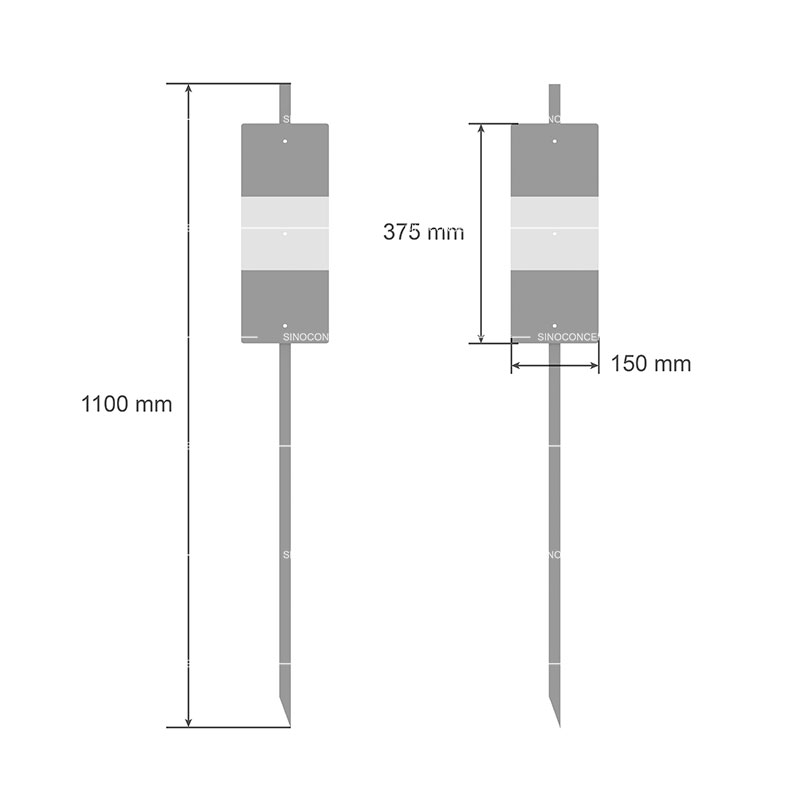

Drawing of a double-sided steel roadworks beacon, displaying detailed data of the overall height, panel height, and panel width.
Steel reflective post marker pasted with high-intensity grade film only on one side to be installed along roadsides for traffic control
The reflective post also called reflective driveway marker made of steel and fixed with reinforced rivets to be stable and long-lasting
High-intensity grade films used on our steel reflective post of K5B type to increase visibility and safety in all weather conditions
Lower section of a metal roadworks beacon, featuring pointed ends designed for ground insertion.
Drawing of a double-sided steel roadworks beacon, displaying detailed data of the overall height, panel height, and panel width.

Metal Roadworks Beacon

  • Material: Road beacons with galvanized steel leg and plate for strength and long-lasting corrosion resistance.
  • Solid Steel Rivets: Increase strength and keep plate firmly attached to the steel leg for durability.
  • Visibility: Equipped with reflective film of class 1 or 3, providing effective visibility in various lighting conditions.
  • Easy Installation: Thanks to its pointed steel tip, the leg easily fixes into the ground, making installation quick.
  • Enhanced Safety: Its rounded edges prevent injuries during handling or installation.

Spec Sheet
Download
Catalogue
Download

Clear
Interested in bulk orders? Contact us for a customised quote!

Specifications and dimensions of our roadworks beacon delineators

Metal roadworks beacon
Height 1100 mm (43.3 in)
Galvanised steel angle 20 mm x 15 mm (0.78 in x 0.59 in)
Galvanised steel plate 150 mm x 375 mm (5.9 in x 14.7 in)
Available Types of Reflective Sheeting
  • Engineering-Grade (RA1)
  • High-Intensity Prismatic Grade (RA3)
Packing Plywood crate
Additional Information
  • Construction guidance beacon made of galvanised steel;
  • Assembled by 3 solid steel rivets;
  • Sharp chisel tip for quick and easy installation;
  • Manufactured according to European standard.

Introducing Our Metal Roadworks Beacon

Sino Concept’s metal roadworks beacons are reliable traffic safety tool. It helps mark dangerous areas and guide road users in construction zones and maintenance areas.

Made from hot-dip galvanised steel, it is strong and stable. Equipped with reflective film, it delivers exceptional visibility in all weather conditions.

Whether for temporary repairs or major infrastructure work, our beacon supports fast and secure traffic control.

Metal roadworks beacon overview highlighting its traffic safety features, galvanised steel build, and visibility benefits for construction zones.

Advantages of Our Metal Roadworks Beacon

Each feature is designed to ensure durability, visibility, and ease of use.

Metal roadworks beacon made from hot-dip galvanised steel and solid rivets, built to withstand repeated impacts on demanding construction sites.

Built for Durability

Our beacons are made from hot-dip galvanised steel and solid steel rivets. The strong angle and steel plate structure resists repeated impacts, making it ideal for demanding construction sites and public works environments.

Metal roadworks beacon with RA1 or RA3 reflective sheeting for high visibility in low light and poor weather conditions.

High Visibility for Road Signs Day and Night

Equipped with RA1 or RA3 reflective sheeting, our metal panel offers clear visibility in low light, at night, and in bad weather.

Metal roadworks beacon with angled pointed leg design for quick installation without drilling or base support.

Quick Installation

Our product has an angled pointed leg for quick setup. No drilling or base is needed, allowing fast deployment across time-sensitive or fast-moving construction projects.

Metal roadworks beacon with rounded edges and stackable design for safe handling and efficient transport in plywood crates.

Compact and Stackable for Transport

Our rounded edges help protect workers from cuts during handling. Our traffic beacon stacks neatly in plywood crates, allowing for efficient storage and smooth transport.

Available Configurations and Options

Choose from two reflective grades to suit different visibility requirements:

  • RA1 Engineering Grade: Suitable for general road safety applications
  • RA3 High-Intensity Prismatic: Best for high-speed or low-light conditions needing better visibility

Two side types are available to choose from:

  • Single-Side: Reflective panel on one side, ideal for positioning against barriers or walls
  • Double-Sided: Reflective panel on both sides, for open areas with two-way visibility needs
Metal roadworks beacon configuration options including RA1 and RA3 reflective grades, with single-side and double-side panel types for varied visibility needs.

Best Applications for Our Traffic Beacon

Our traffic beacon is suitable for construction, maintenance, and traffic control projects. Common uses include:

  • Temporary road closures
  • Construction site boundaries
  • Road repairs and work area marking
  • Temporary lane changes and traffic redirection

High visibility ensures reliable performance in both public and private sector applications.

Metal roadworks beacon use cases including road closures, construction boundaries, lane changes, and traffic redirection.

Discover More Temporary Traffic Control Panel

To improve your range, we also offer these commonly used safety products：

Picture Model Ideal For
Vertical traffic panels with anti-UV reflective tapes, used as traffic management equipment for road safety. Plastic Roadworks Beacon A lightweight beacon for guiding vehicles around obstacles. Ideal for temporary use.
Scandinavian type delineator panel with anti-UV reflective tapes, used as road beacon for traffic management and lane marking. Scandinavian Delineator Panel Reflective panel for snowy or low-light regions. Commonly used in Northern Europe for clear lane guidance and visibility.

Ready to Order? Talk to Sino Concept!

Our beacons are a durable, easy-to-deploy solution for marking zones and improving visibility at construction and maintenance locations.
Contact us to request a quote or specifications and check current stock availability.
