Cable ramp – 2 channels

  • Material of the base: Outdoor rubber cable ramp available in vulcanised rubber for flexibility and durability, or a Plastic-Rubber composite as a more economical option; both are REACH compliant, odourless, and built to last.
  • Cover: Thick, UV-resistant polyethylene, designed to withstand weather conditions and sunlight, ensuring a long lifespan.

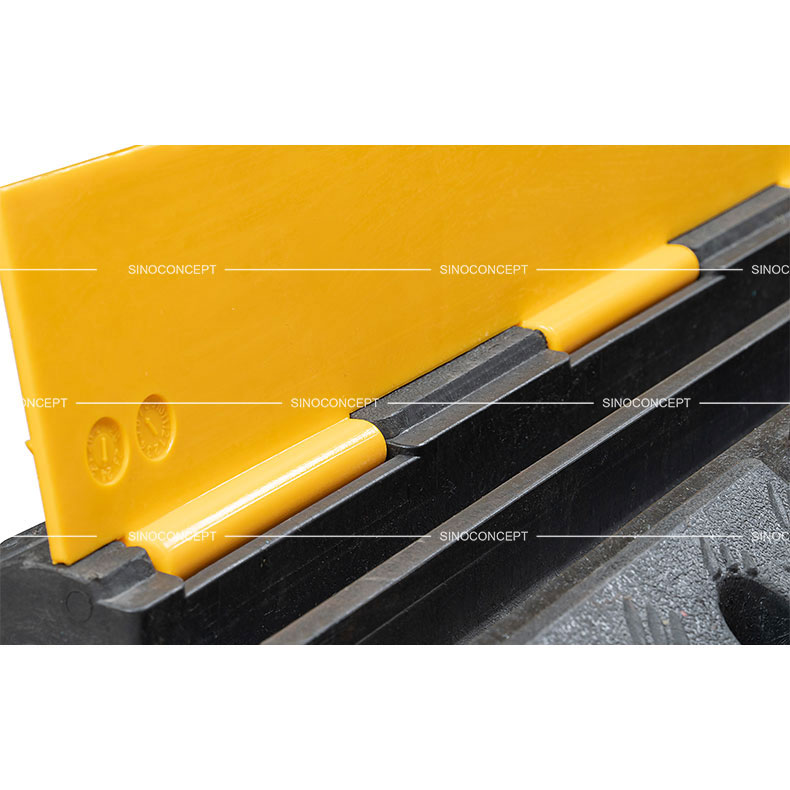

  • Assembly: Integrated nylon rod, securely connecting the base of the cable protector and the yellow cover, with no risk of detachment.
  • Resistance: Supports axle loads up to 5,443 kg, providing reliable protection even in heavy industrial environments.
  • Usage: Ideal for protecting cables on the ground, effectively securing installations.
  • Handling: The integrated handle allows for easy transport of two cable protectors at once, reducing fatigue and saving time during installation and storage.

Clear
Interested in bulk orders? Contact us for a customised quote!

Specifications and dimensions of our 2-channel cable ramps

2-channel cable ramp

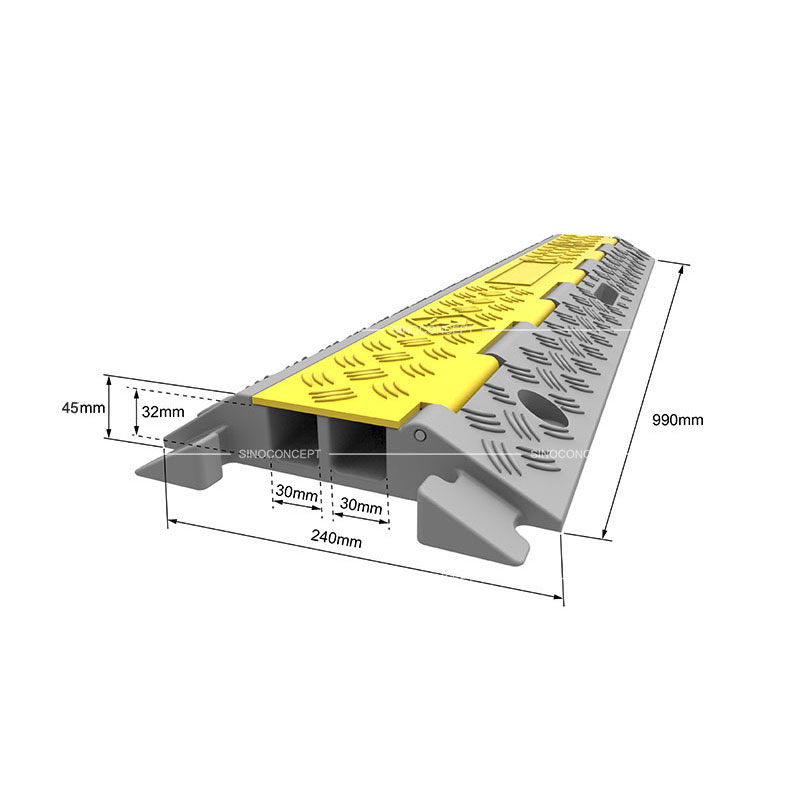

Dimensions
  • Length: 990 mm (39 in)
  • Width: 240 mm (9.5 in)
  • Height: 45 mm (1.8 in)
Max. Cable Diameter Ø 30 mm (Ø 1.2 in)
Material (Base)
  • Standard version: Plastic-Rubber composite (suitable for lightweight and short-term use)
  • Heavy-duty version: Premium recycled rubber, no toxic smell (suitable for heavy-duty and long-term use)
Material (Cover) Polyethylene (PE)
Compliance REACH compliant
Max. Weight Capacity 5,443 kg (12,000 lbs) per axle
Packing Galvanised steel rack

Sturdy 2-channels cable ramps on sale directly from the manufacturer

We at Sino Concept manufacture our 2-channel cable ramps to be sturdy and long-lasting even with heavy vehicle and pedestrian traffic. To ensure its resistance, we carefully select our rubber raw materials. Indeed, our light-duty two-channel cable protector withstands a weight of 5,450 kg per tyre. Thanks to its durable materials and bright yellow colour cover, it is excellent cable management equipment for:

  • Events;
  • Trade shows;
  • Warehouses;
  • Music festivals, etc.

Moreover, our two-channel cable cover has only a slight rubber odour, making it a suitable cable management solution for temporary indoor and outdoor wire protection. Choose Sino Concept as your direct rubber cable ramp supplier, and benefit from an efficient cable protection system to hide and protect wires and cables at low factory-direct prices.

If you are looking for a model of cable protector with more channels, we also manufacture 3-channel and 5-channel cable ramps. For indoor cable management solutions, we recommend our high-density polyurethane (PU) cable and lightweight and flexible PE wire covers, especially suitable for offices, warehouses or other areas where electric wires must be kept tidy, hidden and protected.

Why choose two-channels interlocking rubber cable protectors by Sino Concept?

Purchasing wire management equipment such as cable protectors directly from a trusted manufacturer and supplier has many benefits:

  • Indeed, it is our main principle to offer high-resistance cable covers at low factory-direct prices without compromising quality;
  • To ensure its high-performance features, we carefully control each step of the manufacturing process. For example, we chose to manufacture our cable ramps of vulcanised rubber, the yellow plastic cover is made of sturdy polyethylene (PE), and the nylon bars are made of virgin nylon;
  • Thanks to all these factors, we can ensure that our cable protectors are perfect for fulfilling your cable protector equipment supplies.

Besides, our 2-channel cable protector is just as solid as our 5-channel outdoor cable bridge or 3-channel cable protector. This allows a capacity to withstand repeated crossings of road users, including motorists, cyclists, trucks, cars, ambulances, forklifts, fire trucks and other vehicles.

Custom cable wire protectors and covers

Thanks to our in-house factories, we offer the possibility to purchase customised cable ramps and covers.

For example, we can adjust the colours of the cover or the rubber:

  • Currently, the black and yellow coloured heavy-duty cable ramp is our best-selling wire and cable guard equipment, as we manufacture 50 000 cable protectors annually.
  • Besides, the black cable covers are a common choice for exhibitions, trade shows, music concerts, festivals and sports events.

Thanks to the discreet look, our black cable protectors provide a stylish way to secure cables.

For further information on our numerous cable cover customisation options, please get in touch with us.

Convenient cable management with easy installation

Quick to deploy, our two-channels industrial cable ramp is a convenient way to manage, protect and hide cables. Thanks to the interlocking connection system, our sturdy 2-channels cable protector is quickly applied for the desired length and shape of your choice. After deploying the cable protectors on the ground, the cover can be opened and the cords placed inside. Indeed, the effortless installation makes our 2-channels heavy-duty cable protector ideal anywhere where cables and wires require protection.

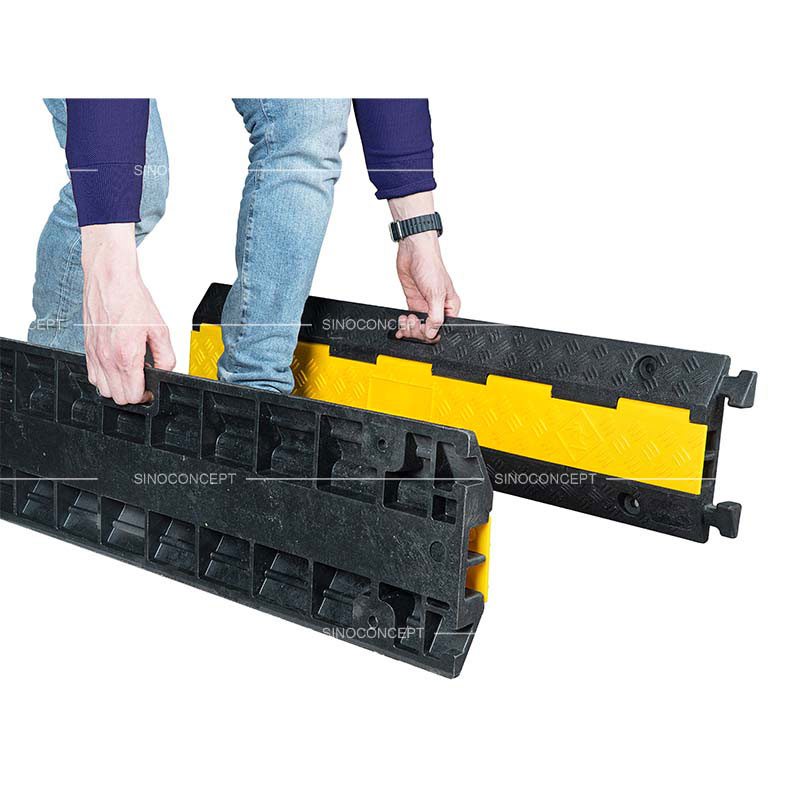

Besides, to make the carrying convenient, we integrated a handle part in our cable protectors, allowing one person to carry two cable ramps simultaneously, making it an efficient and safe way to cover cables. So by choosing to work with Sino Concept, benefit from efficient but straightforward cable management systems that ease the arrangement of electrical wires.

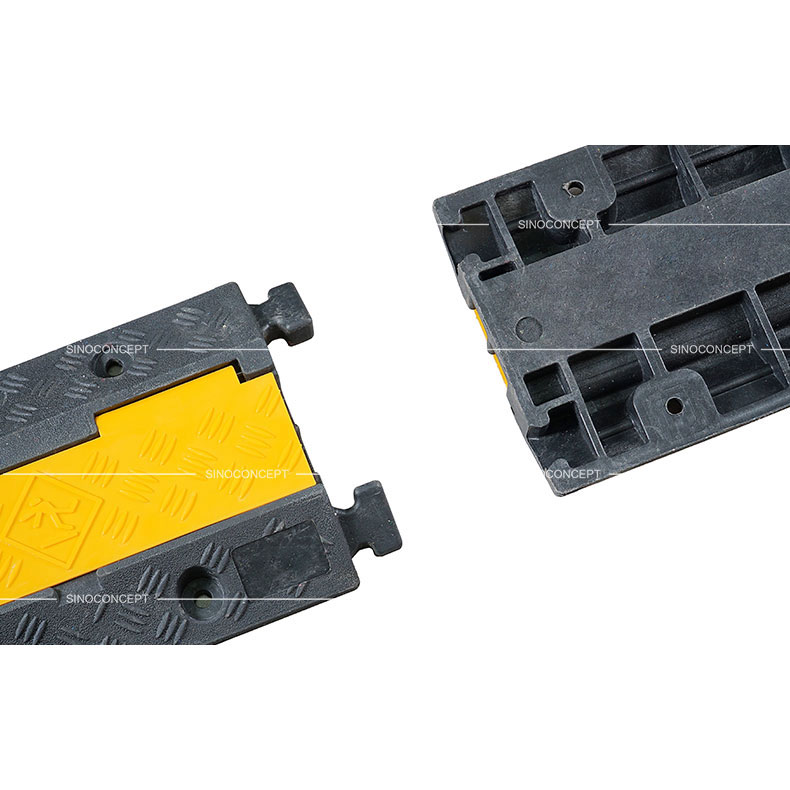

In addition, we designed an integrated and resistant connection system to our cable ramps: this way, the modular cable protector parts can be easily connected. Your cable management layout will then be able to adapt perfectly to the length of your cables.

Anti-slip cable covers and protectors

To ensure especially pedestrian safety, we designed our cable ramps cover part with a reinforced anti-slip texture.

Thanks to the firm grip of the cover, our cable ramps prevent falling and slipping accidents of crossing pedestrians even in rainy weather.

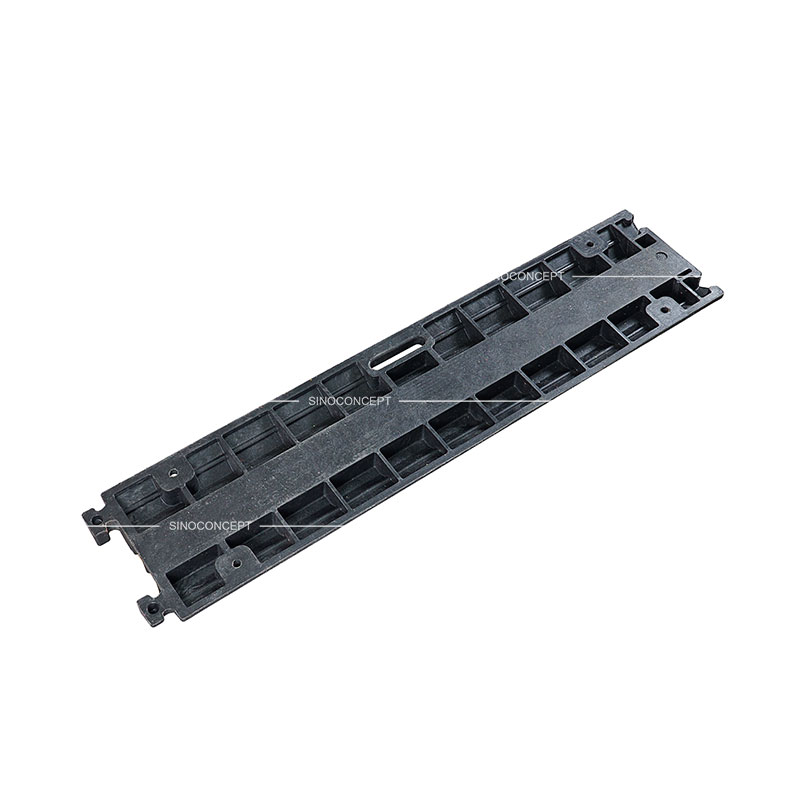

We have also included in our cable ramps, four holes on the protector end parts to allow fixing on the ground and provide more stability whenever required.

However, we do not recommend to fix cable protectors on the ground since there are intended to be used punctually.

By choosing Sino Concept as your supplier of cord management equipment, benefit from a safe and secure way of protecting cables, whether for private or public use.

To enhance safety and visibility, we recommend accompanying our expandable cable ramps with warning symbols and signs.

External 2-channels cable ramps available for sale

What is new in our cable ramp design?

At Sino Concept, we strive to develop our products and consistently innovate for new things.

Indeed, we were the first to implement an integrated handle to the cable protectors.

This convenient handle allows quick installation of the cable covers for the desired area, as one person can easily carry a cable ramp in each hand.

Also, our cable ramps can be used as traffic calming speed bumps thanks to their raised top shape!

To discover further information on our external cable management systems, see our catalogue or our cable protectors and covers product pages.

Economical and low priced cable ramp supplies

By acquiring cable ramps from a manufacturer, benefit from a direct distribution chain without any additional intermediates.

This way, get reduced costs of your cable management equipment.

This also allows an in-house quality control in our factories in Qingdao, China.

Besides, please contact us if you have any special customisation inquiries regarding our cable protection and event management equipment.

We are delighted to do our best to meet your requirements.

Where use our cord protectors and wire covers?

Our cable protectors are perfectly suitable to hide and protect cables.

They can be used at several places such as:

  • Car parks;
  • Shopping centres;
  • Christmas markets;
  • Concerts;
  • Exhibitions, etc.

They are also intended to be used temporarily to protect electric cables, hoses and electrical cords.

Secure delivery of cable protectors and cable ramps to Europe and worldwide

Are you either an event equipment professional or working in a construction company and looking for an efficient way to hide, protect and conceal cables and hoses at your worksite? Or are you a retailer of office cord covers, extension cords, wheel chocks, electrical boxes, tv cables, workstations, wheelchair ramps, speed bump end-caps, cable bundles, patch cords, power cords, nylon cable ties or other type cable management related accessories?

Excellent! In that case, we are sure that you would benefit from fulfilling your product range with our two-channels cable ramps.

At Sino Concept, one of our main priorities is respecting delivery deadlines and securing safe delivery to your destination. To ensure you receive the two-channels cable ramps in flawless condition, we pack them into sturdy heavy-duty metal stacking racks. Besides, thanks to our over twelve-year experience in manufacturing and importing from our rubber factories in Qingdao, China, we have the logistics know-how to meet strict transportation deadlines. So far, we have satisfied event management, construction companies, and cable protector retailer clients from various countries worldwide, especially in Europe from countries such as the United Kingdom (UK), France, Germany, Poland, Belgium, Italy, Sweden, Switzerland, etc.

Would you be interested in complementary products? We also manufacture:
