Specifications and dimensions of our hose protector ramps

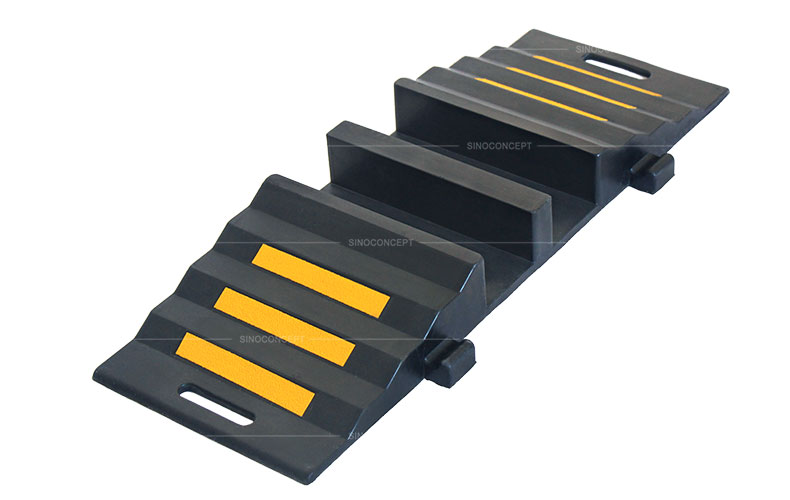

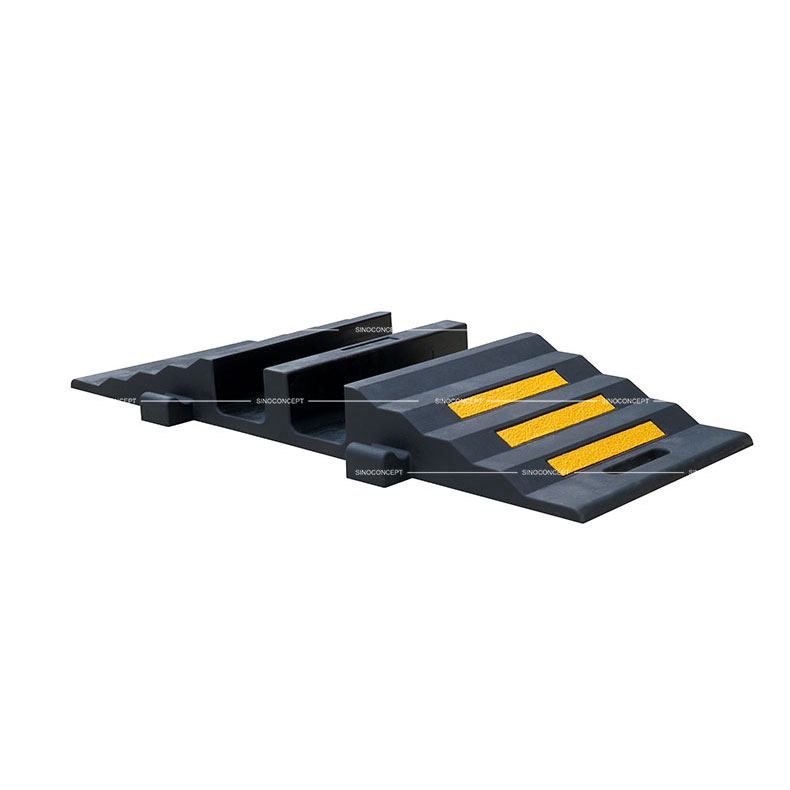

Hose protector ramp

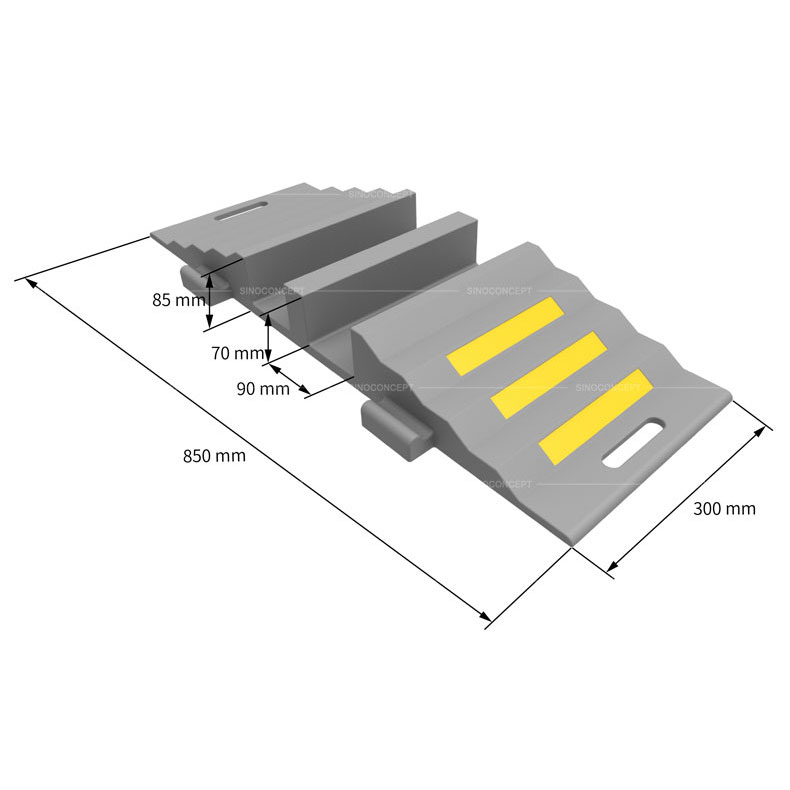

Dimensions
  • Length: 850 mm (33 in)
  • Width: 300 mm (12 in)
  • Height: 85 mm (3.3 in)
Max. Cable Diameter Ø 70 mm (Ø 2.8 in)
Material Premium recycled rubber (no toxic smell)
Compliance REACH compliant
Max. Weight Capacity 9,000 kg (20,000 lbs) per axle
Packing Galvanised steel rack or plywood crate

The hose protector ramp by Sino Concept

We manufacture rubber hose ramps to protect hoses and cables on pedestrian and vehicular traffic paths.

Our heavy-duty hose protectors are ideal for any professional who wishes to secure hoses in warehouses, construction sites and high-traffic areas.

Also, our hose protectors are suitable for fire service measures and firefighter use.

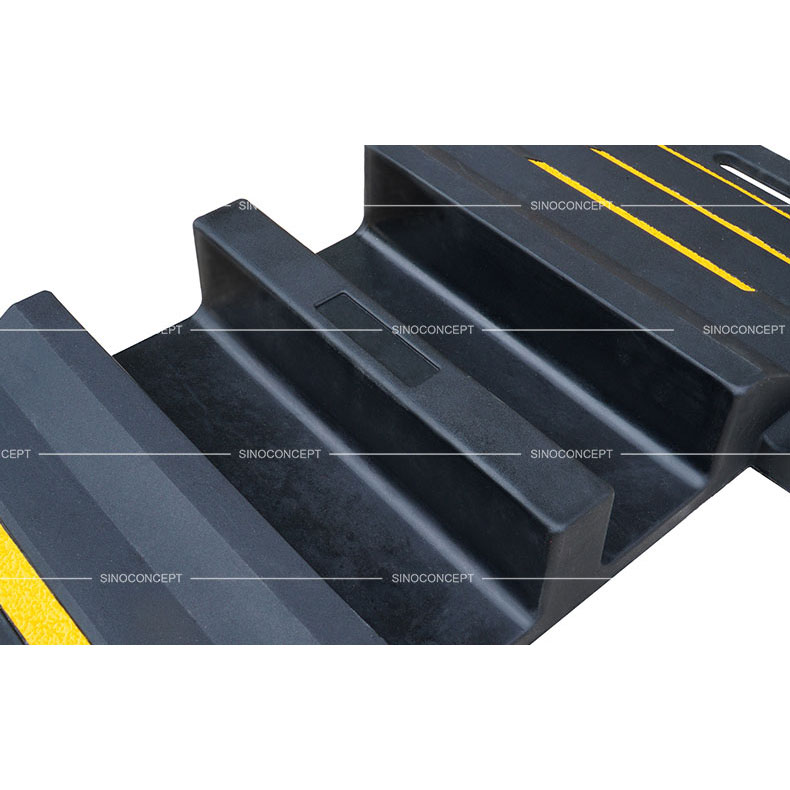

Our cable ramps come with dual channels for cables up to size 70 mm and 120 mm in diameter.

Moreover, our industrial cable ramp cover has convenient carrying handles to ease its application.

In addition, we attach three reflective strips on the sides to increase its visibility and a unique anti-slip structure to prevent slipping and tripping hazards of pedestrian foot traffic.

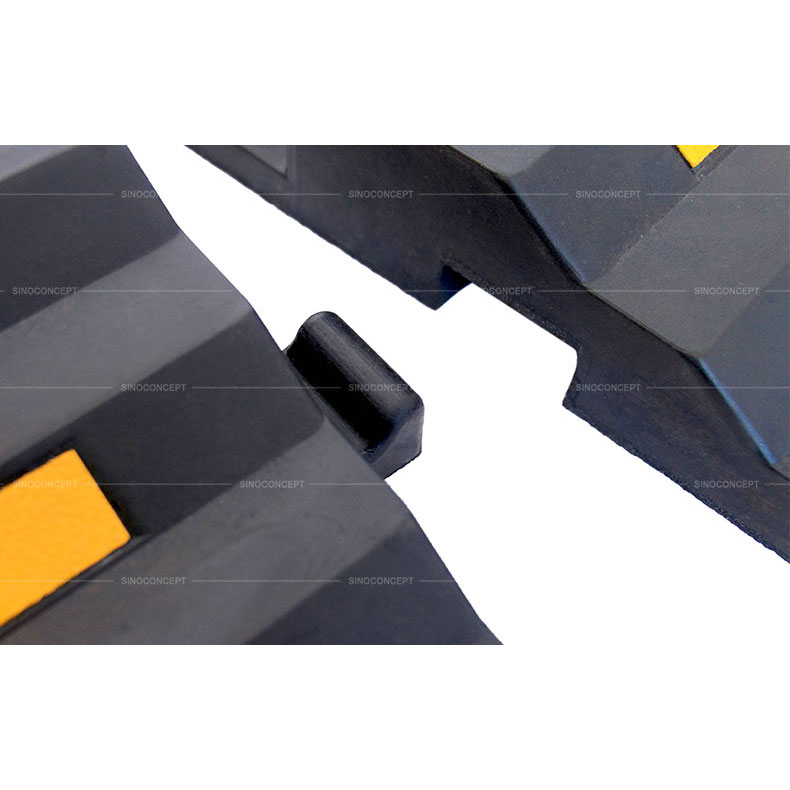

Thanks to the integrated locking mechanism, you can attach as many cable ramp protectors for the desired hose management length.

If you are looking for economic and safe cable management supplies, we at Sino Concept are delighted to assist you.

Would you need cable protection equipment suitable for different applications or sizes of hoses, wires or cables? We also offer cable protectors of 2-, 3-, and 5- channels.

For indoor cable protection measures, we manufacture light-duty polyurethane small model of cable drop-over covers, a larger drop-over cable protector, 1-channel floor cable covers and 3 channels floor cable covers.

We do our utmost to provide suitable wire and cable management solutions since we manufacture bespoke custom cable protection equipment.

For any further information, contact our friendly sales team. We are always happy to help you!

What to know about our rubber hose protection?

Where use rubber cable hose ramps?

Our rubber cable ramp bridges are especially suitable for construction, pedestrian zone, or other areas where cables, wires, or ducts must be protected while maintaining roadway access.

Also, our hose bridges can withstand passages of buses and HVG.

Is your business related to industrial hose products, PVC hose covers, rubber hoses, cable ties, electrical cords, water hoses, cable ducts, cord covers, wheel chocks, industrial rubber ramps, hose assemblies or rubber products?

In that case, we are sure that you would also benefit from our supplies of cable protection equipment.

Heavy-duty hose ramps directly from a factory

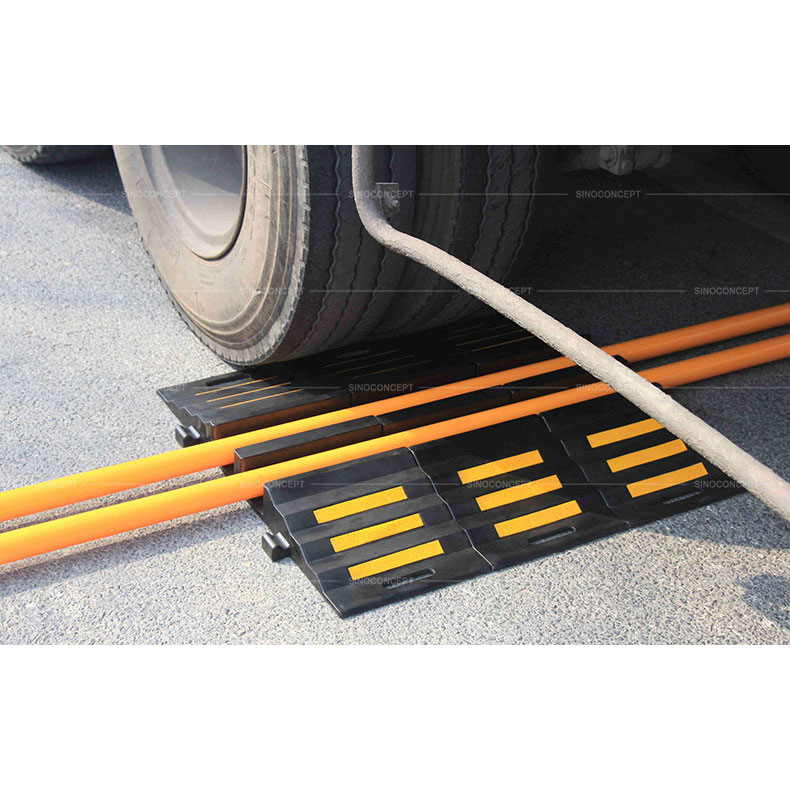

We manufacture our cable ramp protectors to be sturdy and durable under the frequent passage of heavyweight vehicles such as forklifts or fire engines.

We carefully select the raw rubber materials for our hose ramps and carry out constant quality checks throughout the manufacturing process.

Our cable ramp withstands 9000 kg of weight per axle and is ideal for outdoor hose protection.

If you are looking for a way to obtain cheap cable ramps, we are ready to supply you with our large stock of high-quality flexible rubber cable ramps.

The quick layout of outdoor cable protector ramps

Our cable ramps are perfect for temporary and permanent cable management applications.

Indeed, our cable ramps are simple to connect for the length of your choice, thanks to their interlocking system design.

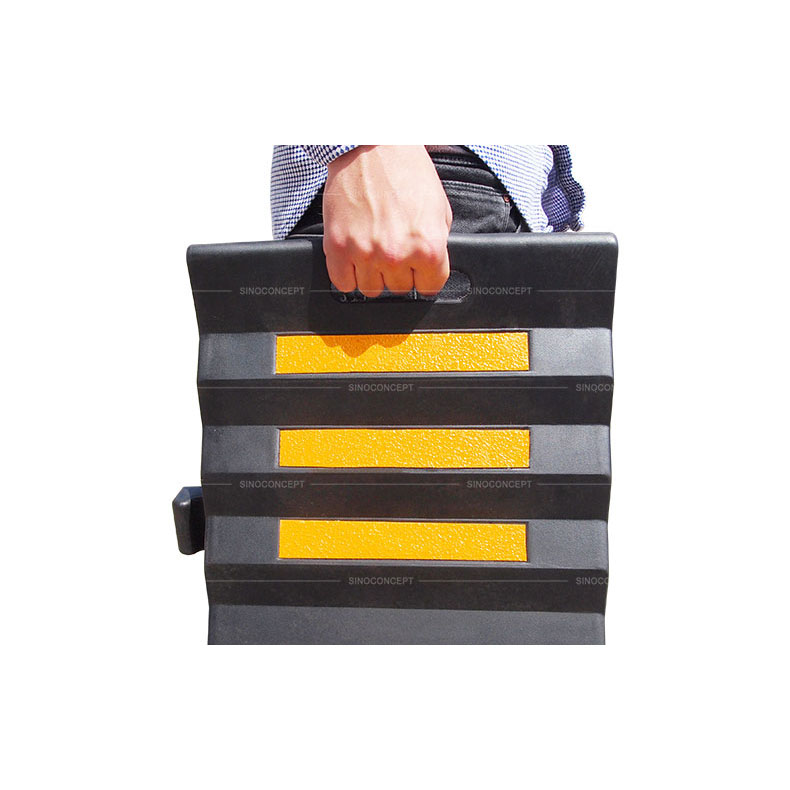

Our cable hose protectors have underlying carrying handles to ease their usage. The quick installation of cable ramps can be crucial in certain situations, such as emergency fire hazards.

Also, our hose ramp has a gripping bottom surface that perfectly adheres to the ground for maximised stability and safety.

More advantages related to the use of our hose protectors

Do you have questions about our cable ramps, sales conditions or transportation methods? Contact us to discover more about our range of cable protection or any other product. Our dynamic and qualified team will advise you and ensure a secure hose or cable management layout.

Don’t forget to check out our different models of cable protectors, such as 2-channel cable covers, 3-channels cable covers, 5-channel cable covers or 1200mm cable ramps.

High-visibility and non-slip textured hose ramps

The reflective strips of our rubber hose protectors allow perfect visibility during road work, day and night.

In addition, we manufacture our hose ramps with an anti-slip surface to secure the passage of pedestrians.

Good to know: Thanks to their reversible design, you can use our hose ramps on both sides.

We recommend attaching ”speed bump, ahead” warning symbols and signs to allow road users to slow down before crossing the hose ramp for optimal traffic safety.

Low-priced multi-purpose hose ramp: speed reducer and cable protection

Our cable and hose protector can also be used as a speed-reduction device. Thanks to its high profile shape, it reduces vehicular traffic speeds while securing hoses on the ground.

Are you looking for a way to purchase heavy-duty hose bridge ramps at reduced costs?

As a direct manufacturer, we offer low-cost cable ramps without compromising quality.

Indeed, we manufacture hose ramps in our factories in Qingdao, China. So by choosing Sino Concept, benefit from a direct supply chain with no intermediaries!

Solid packing and efficient delivery of cable protector ramps

Are you wondering how to arrange delivery and logistics to your destination? You do not have to worry: We at Sino Concept have handled logistics from our factories worldwide since 2009.

It is a high priority for us to ensure safe transportation while respecting delivery deadlines.

Indeed, we pack our hose protector ramps into heavy-duty pallet collars. Moreover, we will make sure to keep you updated throughout the transport.

Also, we can mix different types of products into the order container, such as speed bumps or flexible PVC cable covers.
